Monitor Your Drive Health with Performance Co-Pilot on Fedora

You wake up one morning to find your home server unresponsive, after some investigation you discover a failed NVMe drive taking your self-hosted services and data with it. Perhaps you’re a system administrator and a workstation’s SSD has been silently accumulating errors for months, and now a user is reporting corrupted files.

Drive failures are rarely instant, they give subtle warnings (through rising temperatures, increasing error counts, and wear indicators) but only if you’re watching. Most people will only check on disk health after problems start, by then it may be too late.

Performance Co-Pilot (PCP) is an open source framework for collecting, monitoring, and analyzing system performance metrics. Recent updates have expanded its drive monitoring capabilities with:

• SMART metric collection for HDDs, SSDs, and NVMe drives
• NVMe error log decoding with human-readable error messages
• WWID-based drive tracking that survives device name changes across reboots
• Seagate FARM telemetry for extended vendor-specific diagnostics

In this post, you’ll set up PCP drive monitoring on Fedora, learn which metrics matter most, and build a Grafana dashboard to visualize your drive health over time.

Prerequisites

To follow along, you’ll need:

• Fedora Workstation or Server (Fedora 39 or later recommended)
• Root or sudo access for installing packages and PMDAs
• smartmontools installed (PCP’s SMART agent depends on smartctl)

You can verify smartmontools is available:

$ rpm -q smartmontools

If it’s not installed:

$ sudo dnf install smartmontools

What is SMART?

SMART (Self-Monitoring, Analysis and Reporting Technology) is a monitoring system built into modern hard drives, SSDs and NVMe devices. SMART continuously tracks indicators like wear leveling, error rates, temperature and power-on hours. These are reliability metrics that can help point towards impending failures.

Most people only check SMART data once, using tools like smartmontools (smartctl -a /dev/sda) and only when they already suspect a problem. That approach only gives you a single snapshot. PCP takes a different approach: its SMART agent collects these metrics continuously in the background, building historical trends that you can analyze.

Did your drive’s temperature spike yesterday during a large file transfer? Has your NVMe wear indicator increased from 5% to 15% over the past six months? Continuous monitoring catches these patterns. Drive failures rarely happen without warning, clues are given through SMART values that shift over time.

Installing and enabling PCP with the SMART PMDA

Getting started is straightforward. Install the required packages:

$ sudo dnf install pcp pcp-pmda-smart

The pcp-pmda-smart package provides the SMART monitoring agent. Next, install the PMDA (Performance Metrics Domain Agent):

$ cd /var/lib/pcp/pmdas/smart/
$ sudo ./Install

The installer will prompt for configuration options. The defaults work well for most setups, so press Enter to accept them.

Start and optionally enable the PCP collector daemon:

$ sudo systemctl start pmcd
$ sudo systemctl enable pmcd

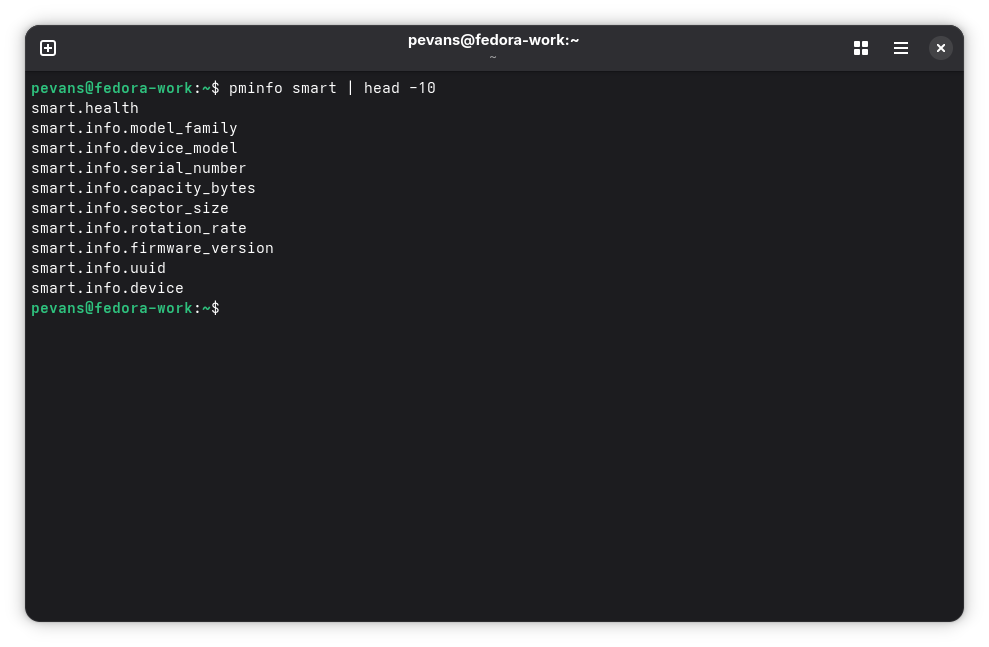

Verify the SMART metrics are available:


If you see metrics listed, you’re ready to go.

Querying SMART metrics

Now that monitoring is running, let’s look at the metrics that matter most.

Temperature

Drive temperature is one of the easiest health indicators to track. Query it with:

$ pminfo -ft smart.attributes.temperature_celsius.value

For NVMe drives, use:

$ pminfo -ft smart.nvme_attributes.temperature_sensor_one

As a general guideline: sustained temperatures above 60 °C for HDDs or 70 °C for SSDs and NVMe drives indicate potential cooling problems. Consistent high temperatures accelerate wear and reduce drive lifespan.

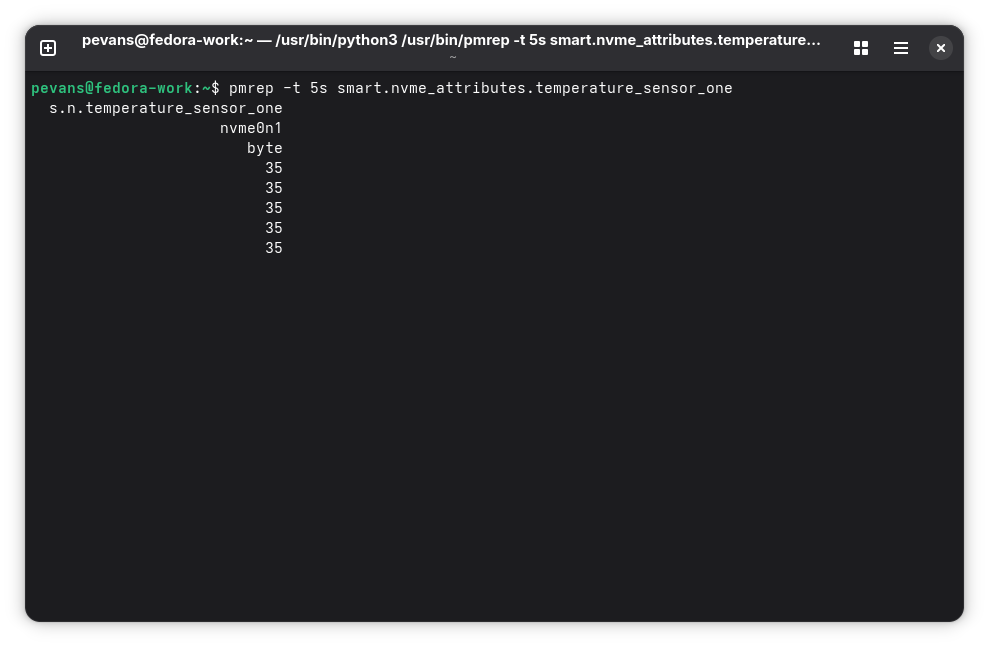

To watch temperatures update in real time (every 5 seconds):

$ pmrep -t 5s smart.nvme_attributes.temperature_sensor_one smart.attributes.temperature_celsius.value

Press Ctrl+C to stop.

Wear and age indicators

Every drive has a finite lifespan. These metrics help you track where a drive is in its lifecycle.

Power-on hours tracks total runtime:

$ pminfo -ft smart.attributes.power_on_hours.value
$ pminfo -ft smart.nvme_attributes.power_on_hours          # NVMe

A drive with 50,000 hours (roughly 5.7 years of continuous operation) is significantly older than one with 5,000 hours.

Power cycle count shows how many times the drive has been powered on and off:

$ pminfo -ft smart.attributes.power_cycle_count.value
$ pminfo -ft smart.nvme_attributes.power_cycles             # NVMe

Excessive power cycling can accelerate mechanical wear in HDDs and contribute to flash cell wear in SSDs.

For NVMe drives, smart.nvme_attributes.percentage_used is the most important wear metric. It runs from 0 to 100%, reflecting the drive’s consumed endurance. Above 80% means significant wear. Above 90%, start planning a replacement.

$ pminfo -ft smart.nvme_attributes.percentage_used

Critical error metrics

These are the metrics you hope stay at zero. Any non-zero value or an increasing trend points to physical drive problems.

Reallocated sector count shows bad sectors that the drive has detected and remapped to spare areas. Modern drives reserve sectors for this purpose but once remapping starts it signals deteriorating media:

$ pminfo -ft smart.attributes.reallocated_sector_count.value

Current pending sector count tracks sectors waiting to be remapped. A non-zero value suggests the drive is actively struggling with bad areas:

$ pminfo -ft smart.attributes.current_pending_sector.value

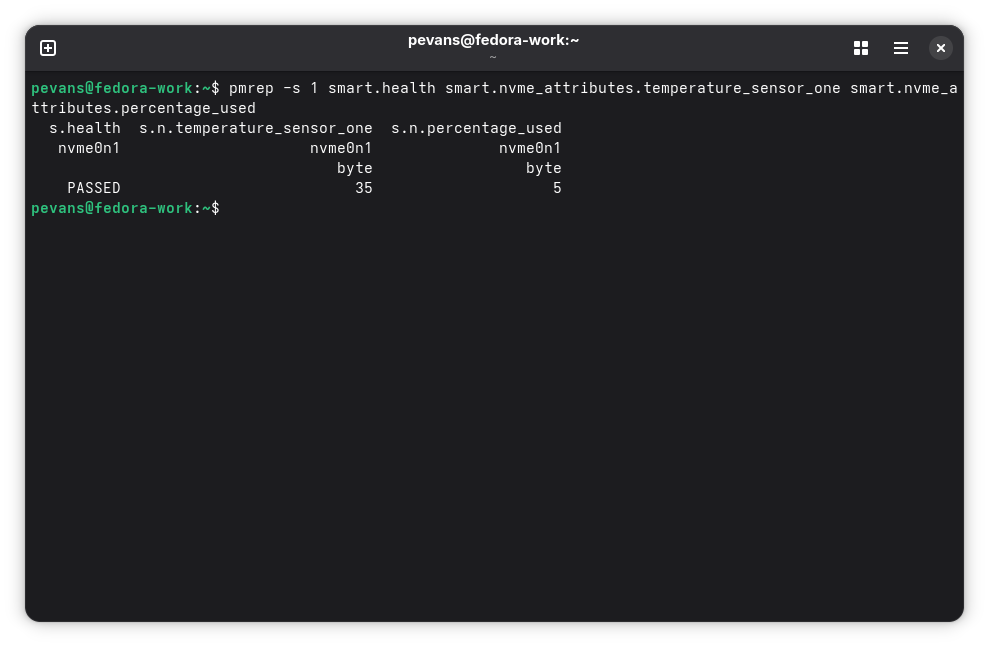

For a quick overview of all drives at once:

$ pmrep -s 1 smart.health smart.attributes.temperature_celsius.value smart.nvme_attributes.temperature_sensor_one smart.nvme_attributes.percentage_used

WWID-based drive tracking

A common challenge with drive monitoring is that device names can change. Your NVMe drive might be /dev/nvme0n1 today but after a reboot or BIOS update it could become /dev/nvme1n1. Hot-plugging USB drives or adding new storage can also shuffle device assignments.

PCP solves this with the smart.wwid.* metric namespace. WWID (World Wide Identifier) is a unique identifier assigned to each drive during manufacturing. It never changes regardless of how the operating system names the device.

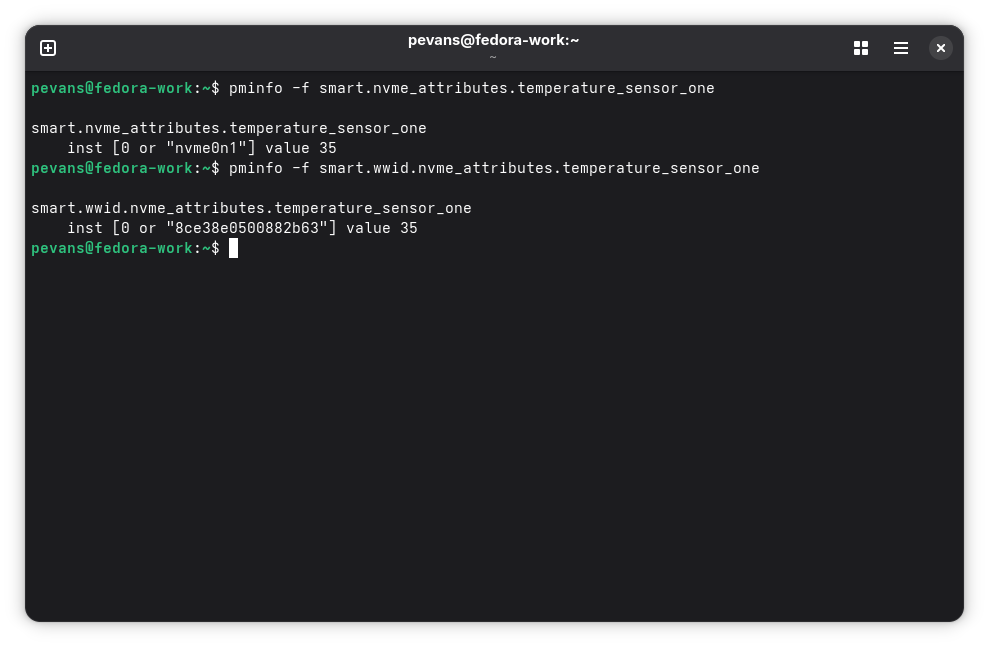

Here’s the difference in practice:

The WWID-based namespace is particularly useful for multi-drive setups (home lab servers, workstations with external drives, or laptops with docking stations). Your monitoring history stays consistent even when device names don’t.

NVMe error log collection

Beyond standard SMART attributes, NVMe drives maintain a detailed error log (log page 0x01) that records every error event the drive encounters. The SMART PMDA can collect and decode these logs giving you visibility into issues that basic SMART counters won’t reveal.

While smart.nvme_attributes.media_and_data_integrity_errors gives you a count, the error log tells you what happened, when it happened, and where on the drive it occurred. Each log entry includes:

• Error type and status code
• Command that triggered the error
• Logical block address (LBA) of the failure
• Namespace and submission queue information
• Timestamp of the error event

This level of detail helps diagnose intermittent problems. Maybe your NVMe drive only throws errors under specific workloads or errors cluster in a particular address range.

Query the error log metrics:

$ pminfo -ft smart.nvme_error_log

The most important metric is smart.nvme_error_log.error_count which should be zero on a healthy drive. If you see non-zero values, check smart.nvme_error_log.status_code for human-readable error descriptions. Common error codes include:

• Data Transfer Error: Problem reading or writing data
• Internal Device Error: Controller or firmware issues
• Aborted Command: Command was cancelled or timed out
• Write Fault: Write operation failed

Recurring errors, especially with the same status code or affecting the same LBA range indicate a real problem that needs attention.

FARM log support for Seagate drives

If you have Seagate drives, PCP offers additional monitoring through the FARM (Field Accessible Reliability Metrics) PMDA. FARM is Seagate’s extended monitoring that goes beyond standard SMART, providing deeper insights into drive behavior.

What FARM provides

FARM logs capture operational data that SMART doesn’t track:

• Power metrics: Per-head write power hours, total power-on hours with finer granularity
• Error history: Read and write error rates broken down by head and zone
• Performance data: Command latency statistics, queue depth tracking
• Environmental history: Temperature trends over the drive’s lifetime, humidity exposure
• Workload patterns: Sequential vs. random I/O ratios, read/write balance
• Head-specific statistics: Individual read/write head performance (for HDDs)

Setting up the FARM PMDA

FARM support works for both SATA and SAS Seagate drives. Install and enable it:

$ sudo dnf install pcp-pmda-farm
$ cd /var/lib/pcp/pmdas/farm/
$ sudo ./Install

Query available FARM metrics:

$ pminfo farm | head -10
farm.smart_attribute.power_on_hours
farm.environment.current_temperature
farm.reliability.uncorrectable_read_errors
farm.reliability.uncorrectable_write_errors
...

FARM is especially useful for tracking long-term health trends, diagnosing subtle issues not visible in basic SMART data and verifying that drive specifications match actual usage.

Note: FARM metrics are Seagate-specific. They won’t work with Western Digital, Samsung, or other manufacturers. For universal monitoring use the SMART PMDA covered earlier.

Visualizing with Grafana

PCP integrates with Grafana through the grafana-pcp plugin, letting you build dashboards that visualize drive health over time. This is where continuous monitoring pays off. You can spot trends, set up alerts and keep an eye on your entire fleet of drives from a single dashboard.

Installing the Grafana PCP plugin

Install Grafana and the PCP plugin:

$ sudo dnf install grafana grafana-pcp

Start the required services:

$ sudo systemctl start grafana-server pmproxy
$ sudo systemctl enable grafana-server pmproxy

Open Grafana in your browser at http://localhost:3000 (default credentials: admin/admin).

Before adding a datasource, you may need to enable the Performance Co-Pilot plugin. Go to Administration > Plugins and data > Plugins, search for Performance Co-Pilot, and click Enable. If the plugin is already enabled, you can skip this step.

Configuring the PCP Vector datasource

Go to Connections > Data sources > Add data source and select PCP Vector. The only required field is the URL:

http://localhost:44322

Click Save & Test to verify the connection.

Building drive monitoring panels

Below are panel configurations you can use in your dashboards. To add a panel, click Add > Visualization on any dashboard, select the PCP Vector datasource and enter the metric name in the query field.

Drive temperature timeseries panel:

This panel shows drive temperature over time, with color thresholds for warning levels.

{
  "type": "timeseries",
  "title": "Drive Temperature",
  "datasource": {
    "type": "pcp-vector-datasource",
    "uid": "PCP_VECTOR"
  },
  "targets": [
    {
      "expr": "smart.nvme_attributes.temperature_sensor_one",
      "format": "time_series"
    },
    {
      "expr": "smart.attributes.temperature_celsius.value",
      "format": "time_series"
    }
  ],
  "fieldConfig": {
    "defaults": {
      "unit": "°C",
      "thresholds": {
        "mode": "absolute",
        "steps": [
          { "color": "green", "value": null },
          { "color": "yellow", "value": 50 },
          { "color": "orange", "value": 60 },
          { "color": "red", "value": 70 }
        ]
      },
      "custom": {
        "thresholdsStyle": { "mode": "area" }
      }
    },
    "overrides": [
      {
        "matcher": { "id": "byType", "options": "number" },
        "properties": [
          { "id": "unit", "value": "°C" }
        ]
      }
    ]
  },
  "gridPos": { "h": 8, "w": 24, "x": 0, "y": 0 }
}

NVMe wear percentage gauge panel:

A gauge showing how much of each NVMe drive’s endurance has been consumed.

{
  "type": "gauge",
  "title": "NVMe Wear Level",
  "datasource": {
    "type": "pcp-vector-datasource",
    "uid": "PCP_VECTOR"
  },
  "targets": [
    {
      "expr": "smart.nvme_attributes.percentage_used",
      "format": "time_series"
    }
  ],
  "fieldConfig": {
    "defaults": {
      "unit": "percent",
      "min": 0,
      "max": 100,
      "thresholds": {
        "mode": "absolute",
        "steps": [
          { "color": "green", "value": null },
          { "color": "yellow", "value": 50 },
          { "color": "orange", "value": 80 },
          { "color": "red", "value": 90 }
        ]
      }
    },
    "overrides": [
      {
        "matcher": { "id": "byType", "options": "number" },
        "properties": [
          { "id": "unit", "value": "percent" }
        ]
      }
    ]
  },
  "gridPos": { "h": 6, "w": 8, "x": 0, "y": 8 }
}

Drive health status panel:

A stat panel showing the overall health assessment for each drive.

{
  "type": "stat",
  "title": "Drive Health Status",
  "datasource": {
    "type": "pcp-vector-datasource",
    "uid": "PCP_VECTOR"
  },
  "targets": [
    {
      "expr": "smart.health",
      "format": "time_series"
    }
  ],
  "fieldConfig": {
    "defaults": {
      "unit": "string",
      "mappings": [
        {
          "type": "value",
          "options": {
            "PASSED": { "text": "PASSED", "color": "green" },
            "FAILED": { "text": "FAILED", "color": "red" }
          }
        }
      ]
    },
    "overrides": [
      {
        "matcher": { "id": "byType", "options": "string" },
        "properties": [
          { "id": "unit", "value": "string" }
        ]
      }
    ]
  },
  "gridPos": { "h": 6, "w": 8, "x": 8, "y": 8 }
}

A complete, importable Grafana dashboard JSON file is provided alongside this post as pcp-drive-monitoring-dashboard.json. Import it via Dashboards > Import in Grafana.

Automated alerting with pmie

PCP includes pmie (Performance Metrics Inference Engine), a rule-based tool that evaluates metric expressions and triggers actions when conditions are met. Where Grafana dashboards require someone to be watching pmie can alert you automatically.

To start and optionally enable pmie:

$ sudo systemctl start pmie
$sudo systemctl enable pmie

Exploring metrics with pmie

Before writing alerting rules you can use pmie in verbose mode to view metrics from the command line. This is a useful way to get familiar with the syntax:

$ echo 'temp_check = smart.nvme_attributes.temperature_sensor_one;' | pmie -e -v -t 5second
temp_check (Mon Jun 30 10:15:01 2026): 35

temp_check (Mon Jun 30 10:15:06 2026): 35

temp_check (Mon Jun 30 10:15:11 2026): 36

Press Ctrl+C to stop. The -e flag shows the evaluated expression, -v shows values even when no action fires, and -t sets the evaluation interval.

You can add conditions and actions to turn this into a rule. Here’s an example that prints a message whenever an NVMe drive’s temperature is above 0 (effectively showing all drives):

$ echo 'temp_check = some_inst(smart.nvme_attributes.temperature_sensor_one > 0) -> print "NVMe temp:" " %i:%v";' | pmie -e -v -t 5second
Mon Jun 30 10:15:01 2026: NVMe temp: nvme0n1:35
temp_check (Mon Jun 30 10:15:01 2026): true

Mon Jun 30 10:15:06 2026: NVMe temp: nvme0n1:36
temp_check (Mon Jun 30 10:15:06 2026): true

The %i token expands to the instance name (the drive) and %v to the metric value.

Writing alerting rules

Now let’s create practical rules that alert on real problems. Save the following to /etc/pcp/pmie/smart-health.pmie:

// Alert if any NVMe drive temperature exceeds 70 °C
some_inst(smart.nvme_attributes.temperature_sensor_one > 70)
    -> syslog 10 min "NVMe drive temperature critical:" " %i at %v °C";

// Alert if any NVMe drive wear level exceeds 80%
some_inst(smart.nvme_attributes.percentage_used > 80)
    -> syslog 24 hour "NVMe drive wear level high:" " %i at %v%";

// Alert if any drive has reallocated sectors
some_inst(smart.attributes.reallocated_sector_count.value > 0)
    -> syslog 24 hour "Drive has reallocated sectors:" " %i with %v sectors";

The syslog action writes to the system log with the tag pcp-pmie. The time after syslog (e.g., 10 min, 24 hour) is a throttle that prevents repeated alerts, so you won’t flood your logs if a condition stays true.

Testing and running pmie rules

Test your rules from the command line first:

$ sudo pmie -v -c /etc/pcp/pmie/smart-health.pmie -t 10second

This evaluates the rules every 10 seconds and prints verbose output so you can see them firing. Once you’re happy with the rules you can run pmie as a persistent service. The system-wide pmie instance is managed by pmie_check and configured in /etc/pcp/pmie/control. Add an entry pointing to your rules file to have them evaluated continuously alongside the default PCP rules.

A complete smart-health.pmie rules file covering temperature, wear and error alerts for both NVMe and SATA drives is provided alongside this post in the conclusions section. Copy it to /etc/pcp/pmie/ to get started.

Other actions are available beyond syslog. Use shell to run arbitrary commands (such as sending an email or desktop notification), print for stdout output or chain actions with & to run multiple actions when a rule fires.

Continuous monitoring with pmlogger

pmlogger is a core utility included with PCP, and automatically logs metrics when running. To start it and enable it on boot:

$ sudo systemctl start pmlogger
$ sudo systemctl enable pmlogger

By default, pmlogger captures a broad set of system metrics. To ensure SMART drive metrics are included, run:

$ sudo pmlogconf -r /var/lib/pcp/config/pmlogger/config.default

When prompted, enable the S.M.A.R.T drive statistics [Linux] group. This ensures drive health metrics are captured continuously, allowing you to review historical trends using tools like pmchart, pmrep, or Grafana with the PCP Valkey datasource.

With pmlogger running, you build a historical record of your drive health. If a drive starts failing in six months, you can look back and see exactly when the warning signs began.

Conclusion

Drive failures give warnings, through SMART metrics, error logs and performance degradation. With PCP’s drive monitoring capabilities you have the tools to catch these warnings before they become data loss.

In this post we covered setting up the SMART PMDA for universal drive health monitoring, interpreting key metrics like temperature, wear levels, error counts and tracking drives reliably with WWID-based identifiers. NVMe users can go deeper with error log collection and Seagate drive owners have access to extended FARM telemetry. Combined with Grafana dashboards and pmlogger you get continuous visibility into your drives’ health.

The key takeaway: continuous monitoring catches trends that one-time checks miss. A few minutes of setup today can save hours of recovery work (or worse, unrecoverable data loss) tomorrow.

For more information, visit the Performance Co-Pilot documentation and the grafana-pcp plugin documentation. The Grafana dashboard used in this post is available to download here and can be imported via Dashboards > Import in Grafana. The pmie alerting rules are also available to download here and can be copied to /etc/pcp/pmie/ for use with pmie.
