Integrating a uTrust FIDO2 Security Key for Full Disk Encryption, Login, and Sudo Access on Fedora 42

This guide provides a step-by-step walk-through for integrating a uTrust FIDO2 security key (Identiv uTrust) with Fedora 42 to secure:

• LUKS2 full disk encryption (FDE)
• Graphical login (LightDM + Cinnamon)
• Sudo elevation

Audience for this article

The guide is intended for instructional cybersecurity labs and intermediate Fedora users. It prioritizes PIN + Touch verification for strong security.

NOTE: Since misconfiguration can result in system lockout, readers should work only on non-production systems, maintain a fallback password, and back up all critical data before making changes.

Background

The following technology is used in this walk-through:

FIDO2 (Fast Identity Online 2) is a standard for passwordless or multi-factor authentication using hardware tokens. It relies on public key cryptography and supports PIN or biometric verification. In this setup, FIDO2 provides secure, hardware-backed authentication using a PIN and a required physical touch on the key.

LUKS2 (Linux Unified Key Setup 2) is the full-disk encryption format used in modern Linux systems.

PAM (Pluggable Authentication Modules) and Polkit (PolicyKit) control authentication for logins and privilege escalation across both GUI and CLI actions.

This guide combines these technologies to deliver end-to-end security — from full-disk decryption at boot, to graphical login, to administrative elevation with sudo.

System Overview

The following hardware/software is used in this implementation:

Hardware and Software:

• Architecture: x86_64
• CPU: Intel Core i7
• Kernel: 6.14.9-300.fc42.x86_64
• Fedora Version: Fedora 42 (Adams)
• Desktop Environment: Cinnamon with LightDM

FIDO2 Key: Identiv uTrust FIDO2

• Vendor/Product:
  0x04e6:0x5a11
• Protocol: CTAP2 / FIDO_2_0
• PIN: Required
• User Presence: Touch required
• User Verification: PIN only (no biometrics)
• Device Path:
  /dev/hidraw0

Disk Setup

• Btrfs on LUKS2 FDE (
  /dev/sda3
  )
• LUKS UUID:
  8b2f0322-f508-4bed-8b1e-8f05cc784d60
  (this will differ on each machine)
• Keyslots:
• 0: Passphrase (argon2id)
• 1: FIDO2 credential (note: in testing, only one FIDO2 key could be used at a time)

---

Process Flow Overview

The following phases occur during implementation:

1. System preparation — Install Fedora 42 with LUKS2 full-disk encryption and update packages.
2. Package installation — Add the development, PAM, and FIDO2 tools required for integration.
3. FIDO2 key enrollment — Register the key with LUKS2 for disk unlock.
4. PAM configuration — Enable FIDO2 authentication for login and sudo.
5. Polkit configuration (optional) — Extend FIDO2 support to graphical privilege prompts.
6. Testing and verification — Confirm PIN + Touch authentication at boot, login, and sudo elevation.

Implementation Guide

Phase 1: System Preparation

1. Create a clean install of Fedora 42 with Cinnamon + LightDM
2. During installation/partitioning configure the following:
   • LUKS2 Full Disk Encryption (Btrfs or ext4)
   • No separate /home
   • No auto-login
   • Create an admin user
3. Update the system:
   sudo dnf upgrade --refresh -y

Phase 2: Required Package Installation

Install required development and security packages:

sudo dnf install -y
gcc make cmake git autoconf automake libtool
pam-devel systemd-devel glibc-devel openssl-devel
libfido2 libfido2-devel fido2-tools u2f-host pam-u2f
pcsc-lite pcsc-lite-ccid pcsc-tools ccid opensc
authselect cryptsetup pam_passwdqc fprintd-pam gnome-keyring-pam

Enable and start the PC/SC daemon for smartcard support:

sudo systemctl enable --now pcscd

Phase 3: FIDO2 Key Setup

1. Insert the FIDO2 key and verify it is detected:
   lsusb
   fido2-token -L
   fido2-token -I /dev/hidraw0
   Expected output is:
   Identiv uTrust FIDO2 (0x04e6:0x5a11) with options rk, clientPin.

2. Troubleshooting considerations if the key isn’t recognized:
   • Ensure /dev/hidraw0 exists
   • Run the following to load kernel modules:
     sudo modprobe hid
     sudo modprobe hid_generic
   • Replug the key

3. If FIDO_ERR_INTERNAL (-9) occurs:
   • Create the plugdev group:
     sudo groupadd plugdev
     sudo usermod -aG plugdev $USER
   • Apply a udev rule:
     echo 'KERNEL=="hidraw*", ATTRS{idVendor}=="04e6", ATTRS{idProduct}=="5a11", TAG+="uaccess", GROUP="plugdev"' | sudo tee /etc/udev/rules.d/70-u2f.rules sudo udevadm control --reload-rules && sudo udevadm trigger
   • Reboot:
     sudo reboot

4. Enroll the FIDO key for LUKS2:
   sudo systemd-cryptenroll --fido2-device=/dev/hidraw0 --fido2-with-client-pin=yes /dev/sda3

5. Validate enrollment:
   sudo cryptsetup luksDump /dev/sda3

6. Update /etc/crypttab:
   sudo nano /etc/crypttab
   Add or modify:
   luks-... UUID UUID=... none fido2-device=auto fido2-with-client-pin=yes discard

Phase 4: PAM Configuration

1. Fedora’s pam-u2f package lacks pamu2fcfg. Build pamu2fcfg from source:
   • git clone https://github.com/Yubico/pam-u2f
   • cd pam-u2f
   • mkdir build && cd build
   • cmake -DBUILD_MANPAGES=OFF ..
   • make
   • sudo cp ./pamu2fcfg/pamu2fcfg /usr/local/bin/
   • sudo chmod +x /usr/local/bin/pamu2fcfg


2. Generate U2F mapping:
   pamu2fcfg -n -u $(whoami) -o pam://fedora | sudo tee /etc/u2f_mappings
   Verify output includes +presence+pin (e.g., yourusername:3aaOH5…Base64…,M9hAf2…==,es256,+presence+pin)

3. Set permissions:
   sudo chmod 600 /etc/u2f_mappings
   sudo chown root:root /etc/u2f_mappings

4. Backup PAM files:
   mkdir -p ~/fido2-audit/pam
   sudo cp /etc/pam.d/{sudo,lightdm,cinnamon-screensaver,system-auth,password-auth,polkit-1} ~/fido2-audit/pam/

5. Update PAM files to include FIDO2 authentication. On this system, the working configuration is:
   • /etc/pam.d/sudo
     • auth sufficient pam_u2f.so authfile=/etc/u2f_mappings cue pinverification=always origin=pam://fedora appid=pam://fedora
     • auth required pam_unix.so
     • account include system-auth
     • password include system-auth
     • session optional pam_keyinit.so revoke
     • session required pam_limits.so
     • session include system-auth
   • /etc/pam.d/lightdm
     • auth sufficient pam_u2f.so authfile=/etc/u2f_mappings cue pinverification=always origin=pam://fedora appid=pam://fedora
     • auth [success=done ignore=ignore default=bad] pam_selinux_permit.so
     • auth required pam_env.so
     • auth substack system-auth
     • auth include postlogin
     • account required pam_nologin.so
     • account include system-auth
     • password include system-auth
     • session required pam_selinux.so close
     • session required pam_loginuid.so
     • session required pam_selinux.so open
     • session optional pam_keyinit.so force revoke
     • session required pam_namespace.so
     • session include system-auth
     • session optional pam_lastlog.so silent
     • session include postlogin
   • /etc/pam.d/cinnamon-screensaver
     • auth sufficient pam_u2f.so authfile=/etc/u2f_mappings cue pinverification=always origin=pam://fedora appid=pam://fedora
     • auth include system-auth
     • account include system-auth
     • password include system-auth
     • session include system-auth

Phase 5: Polkit Configuration (Optional)

Polkit GUI prompts were not enabled on my test system (no /etc/pam.d/polkit-1 and no running user agent). If you want FIDO2 for Polkit dialogs, ensure a compatible agent is running (for Cinnamon: polkit-gnome-authentication-agent-1). In testing, GUI prompts were not enabled by default and required additional configuration.”

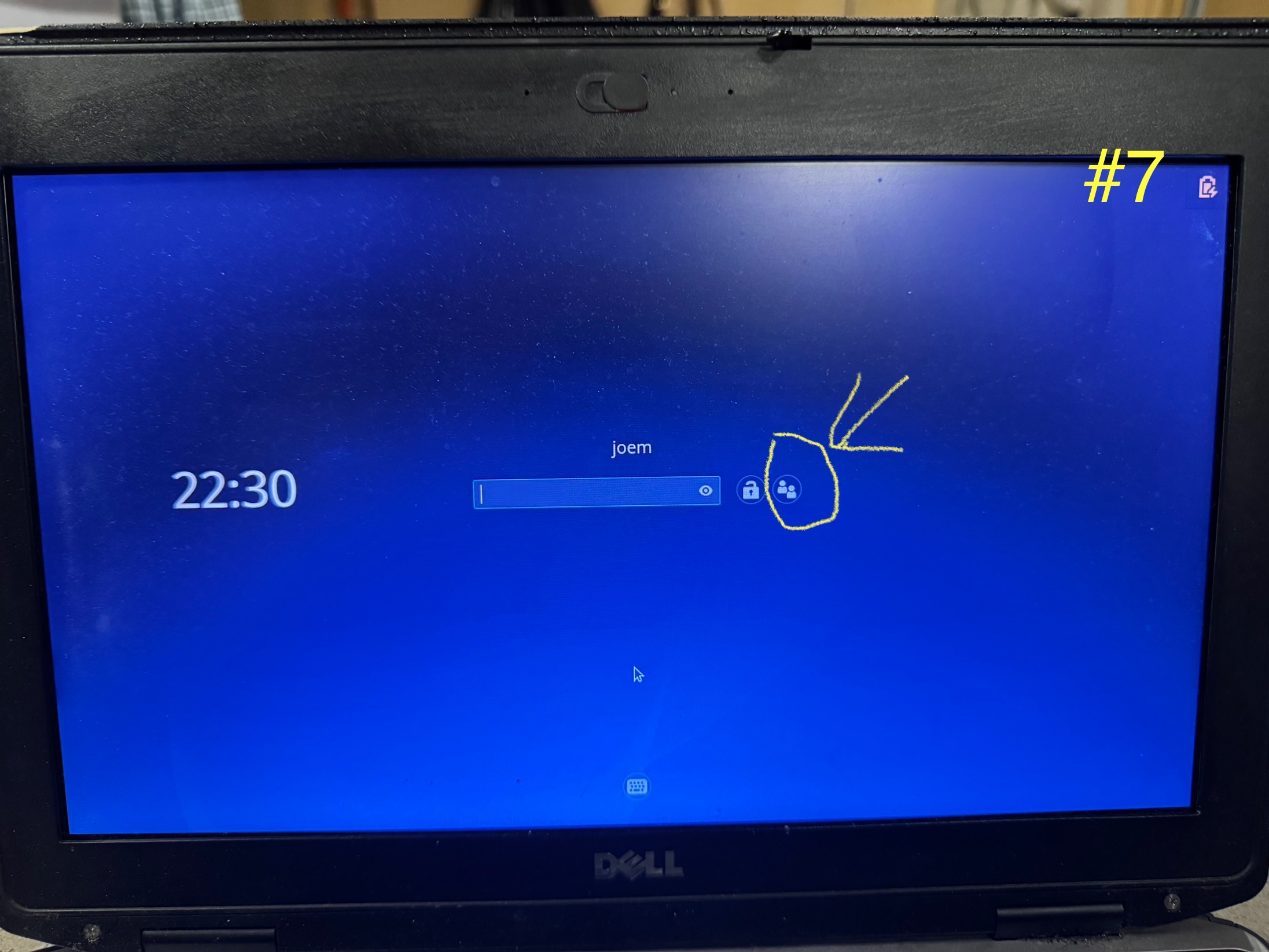

Screensaver unlock: When the screen is locked, Fedora may default to the password prompt. Click the small two-person icon to switch to the FIDO2 method. Keep a fall-back password available. In various tests some desktop prompts did not always default to FIDO2.

Phase 6: Testing

Reboot the system

Confirm functionality

The following sequence of images shows the following:

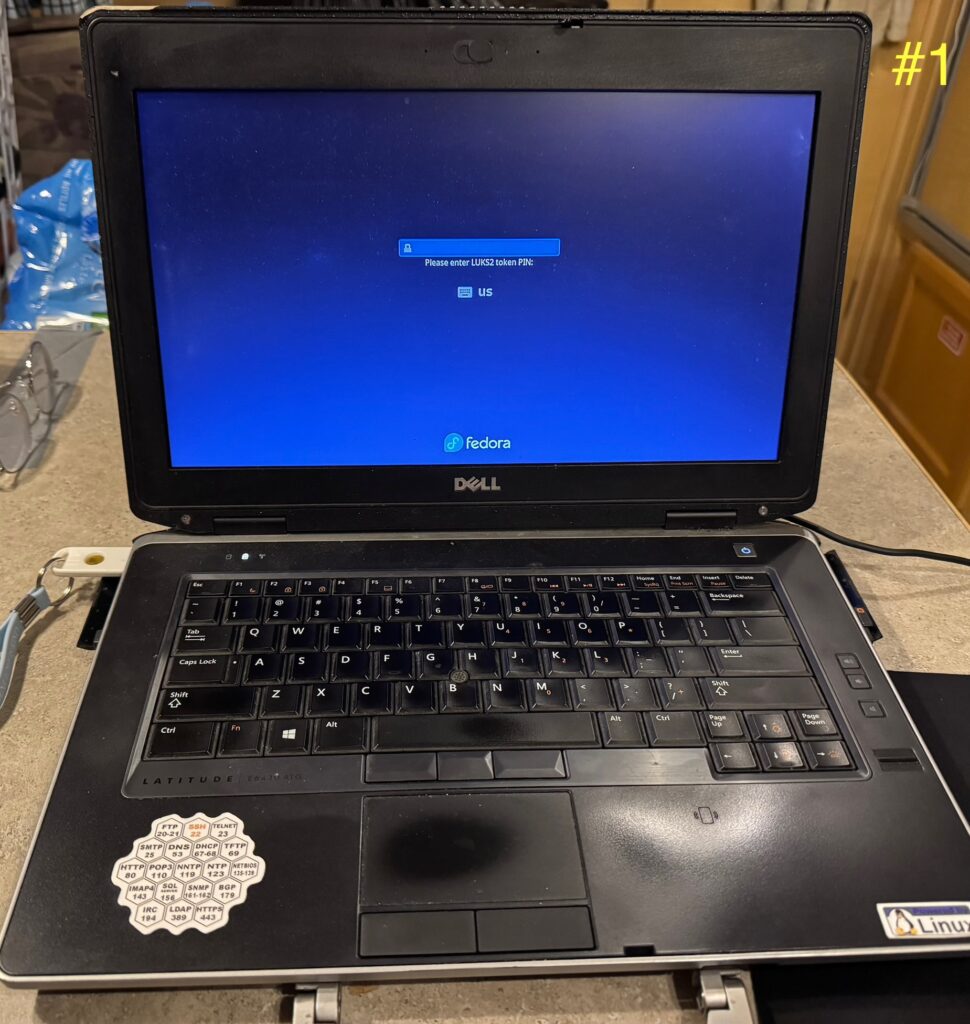

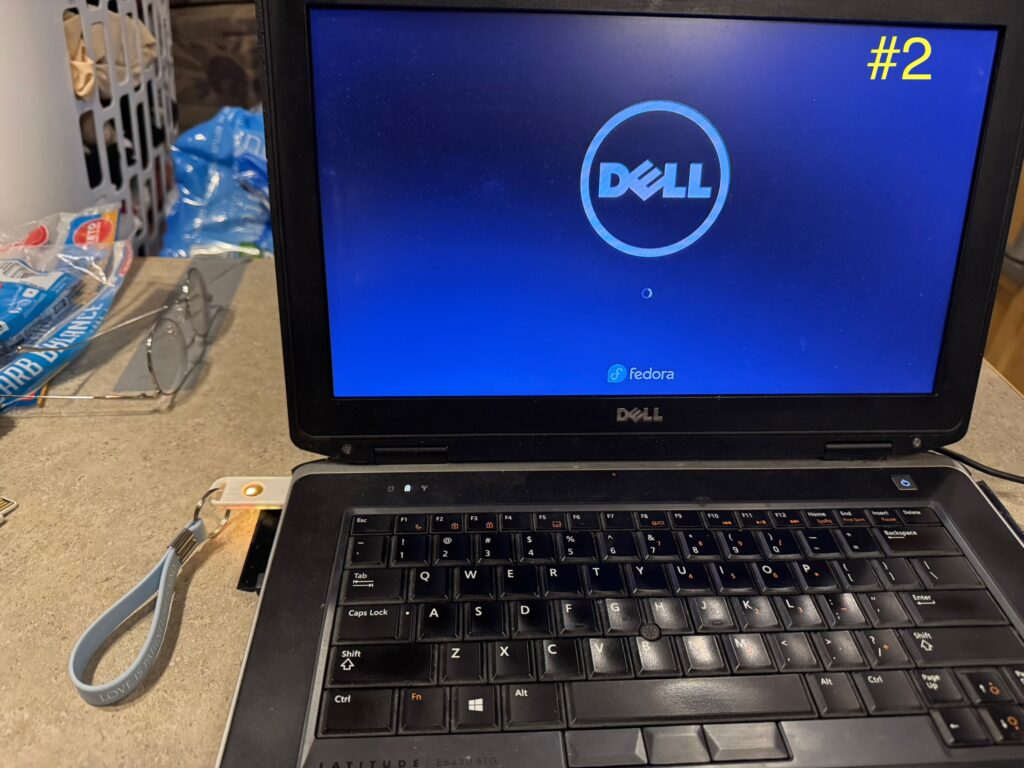

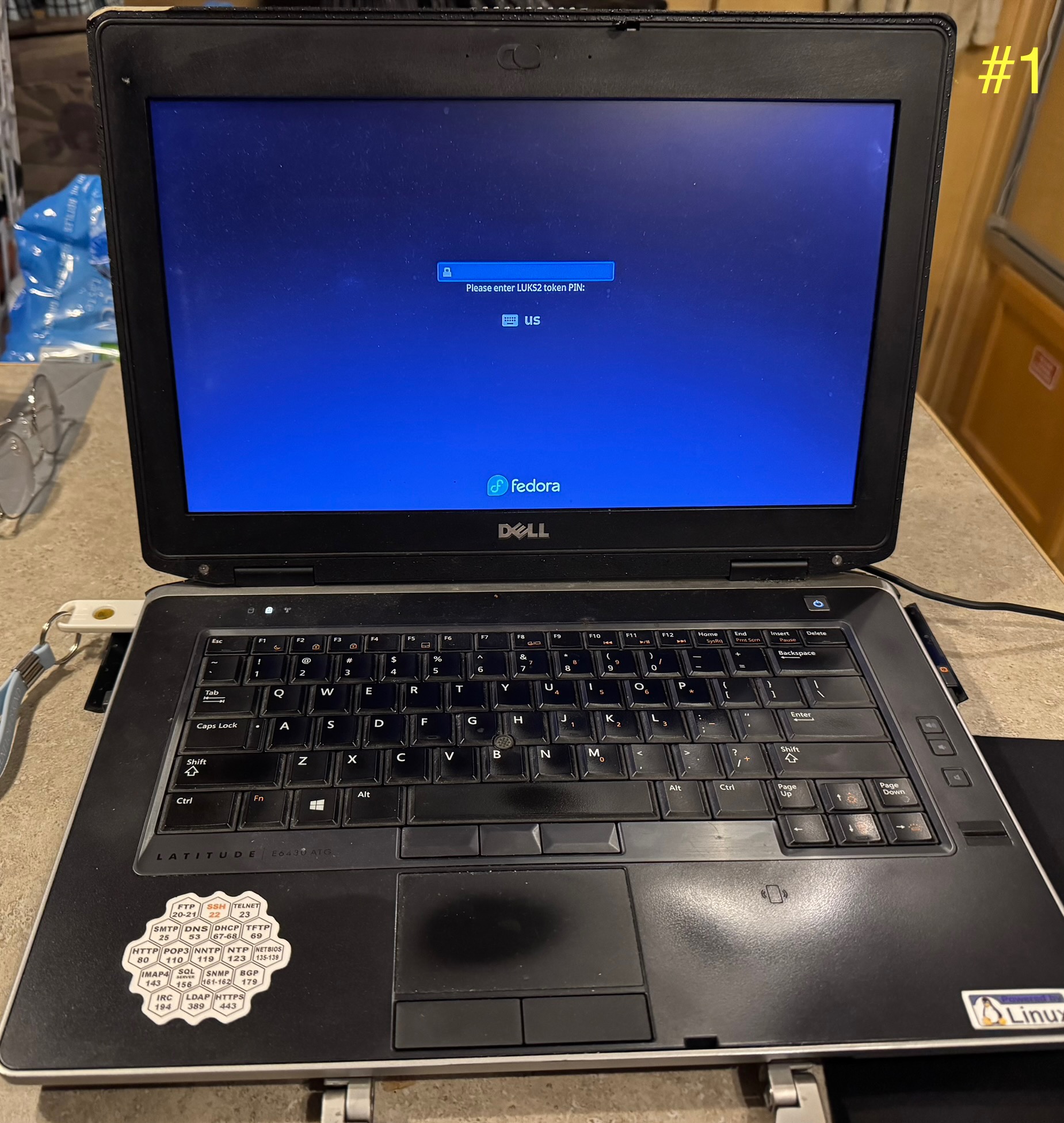

• FDE (LUKS Unlock): PIN + Touch prompt appears at boot

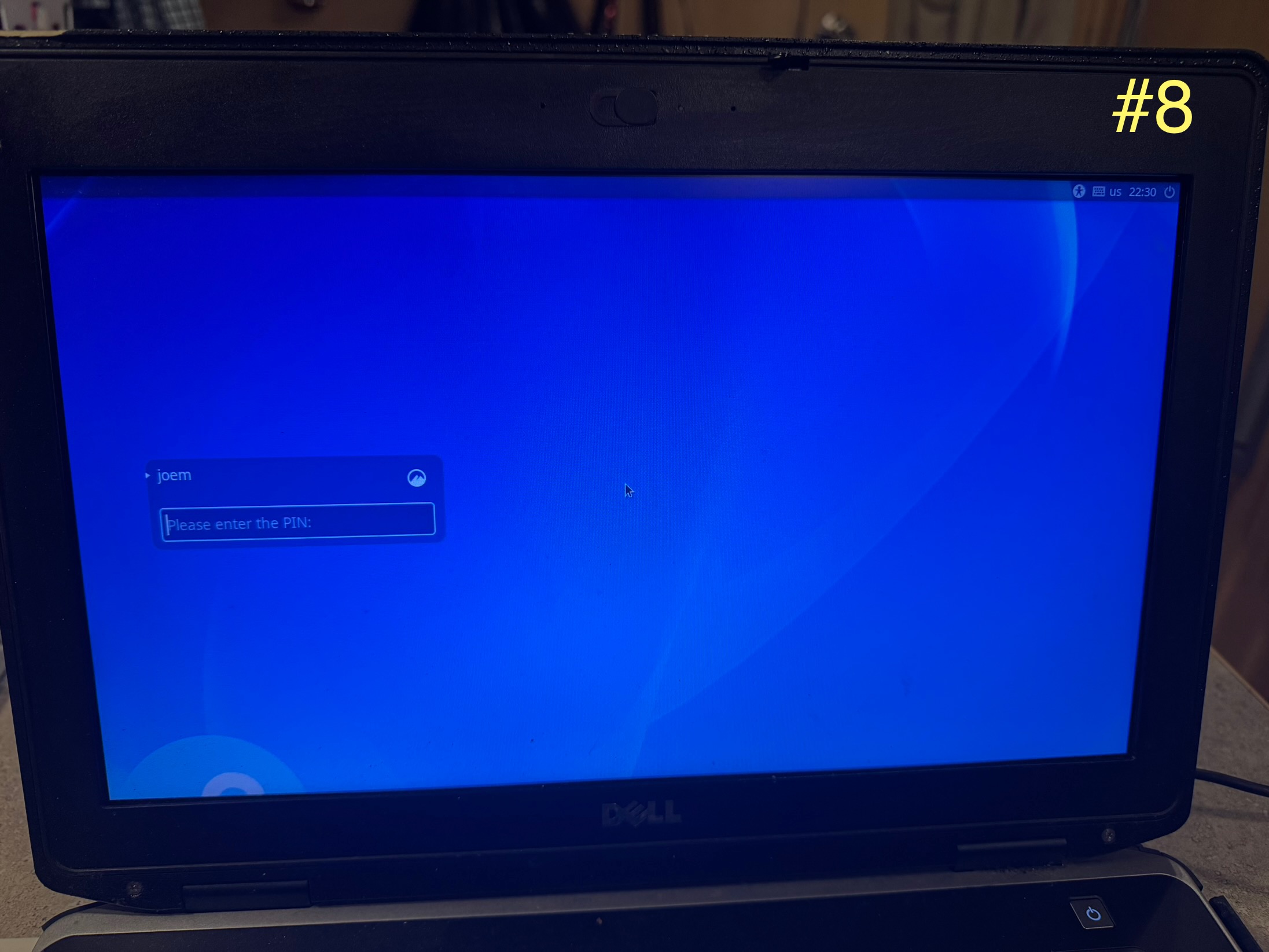

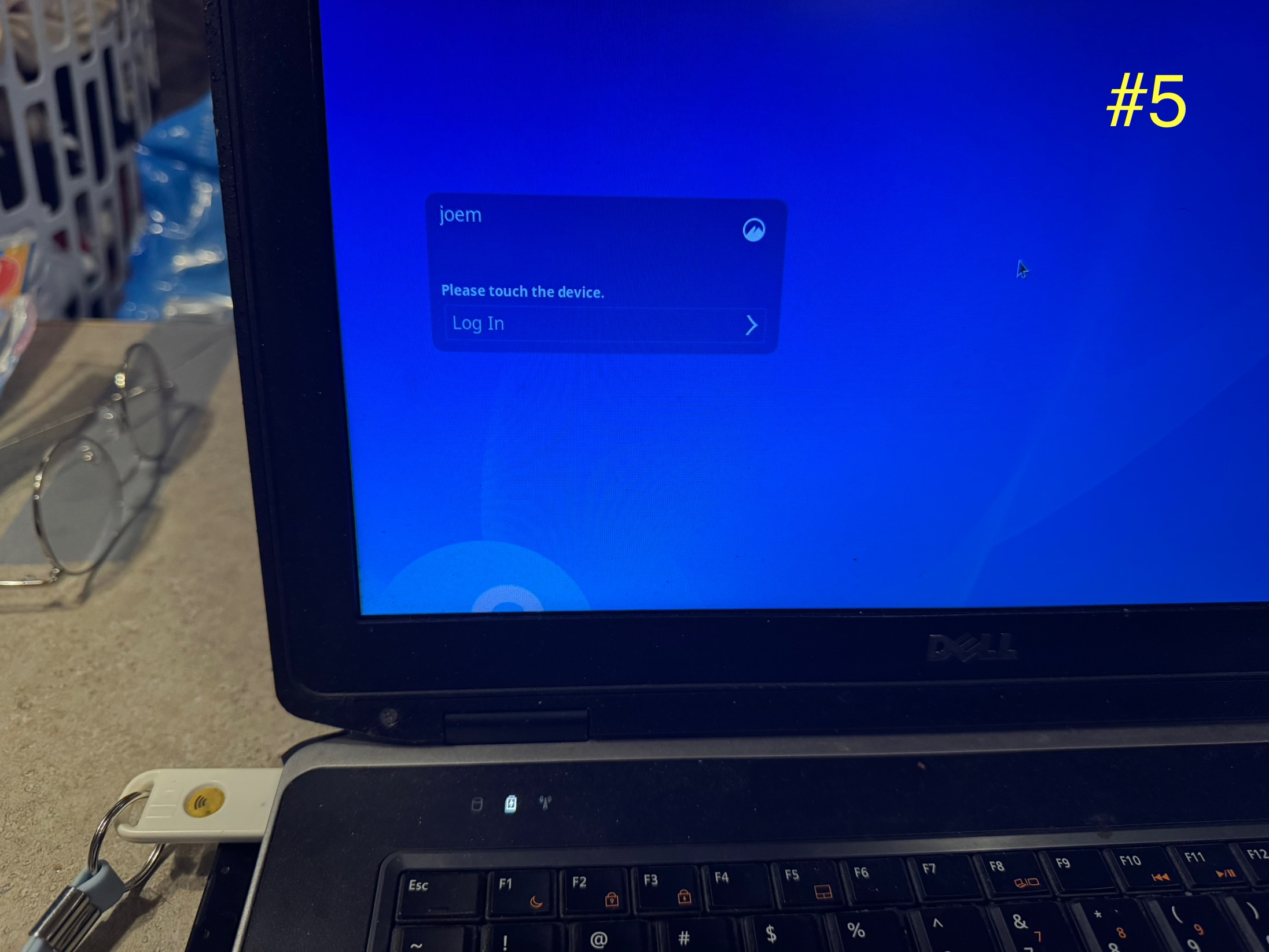

• GUI Login (LightDM): PIN + Touch required
• Sudo: sudo echo test should prompt for PIN + Touch
• Cinnamon lock screen: PIN + Touch (switch input method)
• Polkit: GUI software install or pkexec prompts for PIN + Touch

Confirm the fallback password login remains functional

Recovery and Backup

Backup:

mkdir -p ~/fido2-audit/pam_restore
for file in sudo lightdm cinnamon-screensaver system-auth password-auth polkit-1;
do
  sudo cp ~/fido2-audit/pam/$file ~/fido2-audit/pam_restore/$file
done

Restore if needed using TTY or Live USB.

Emergency Login:

• Use a high-entropy admin password
• Store the password securely off-line or in encrypted container

Troubleshooting

Multiple FIDO2 Keys:

lsusb
sudo usbreset /dev/bus/usb/001/003

Warnings

• Never test on production systems
• Back up /etc/crypttab and /etc/pam.d/*
• Avoid running dracut --force unless ready

Security Notes

Strengths:

• Hardware-backed auth
• PIN + Touch = Strong 2FA

Risks:

• Loss of key
• System updates may break compatibility

Recommendations:

• Always keep a fall-back passphrase
• Register a backup FIDO2 key
• Back up /etc/u2f_mappings and test after upgrades

Performance Considerations

Component	Delay Added
Boot (FDE)	~5–10 seconds
GUI Login	~2–3 seconds
Sudo/Polkit	~1–2 seconds

Conclusion

This guide demonstrates the successful integration of a uTrust FIDO2 security key with Fedora 42 for secure authentication across LUKS2 full-disk encryption, LightDM login, and sudo elevation. The setup is stable, reproducible, and well-suited for labs or intermediate Fedora users.

Polkit integration is optional and may vary by desktop environment. In testing, GUI prompts were not enabled by default and required additional configuration.
